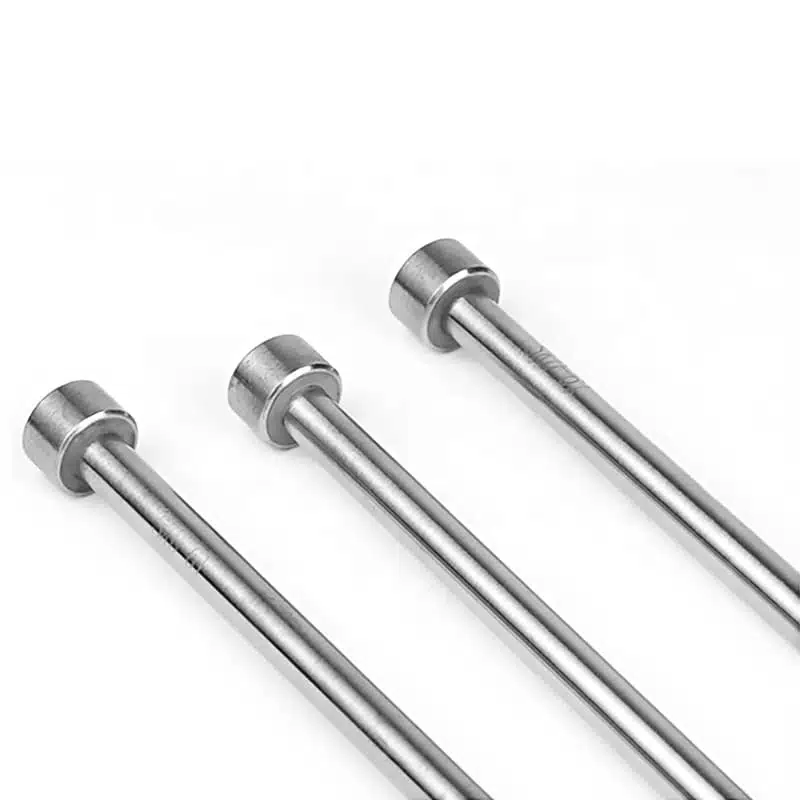

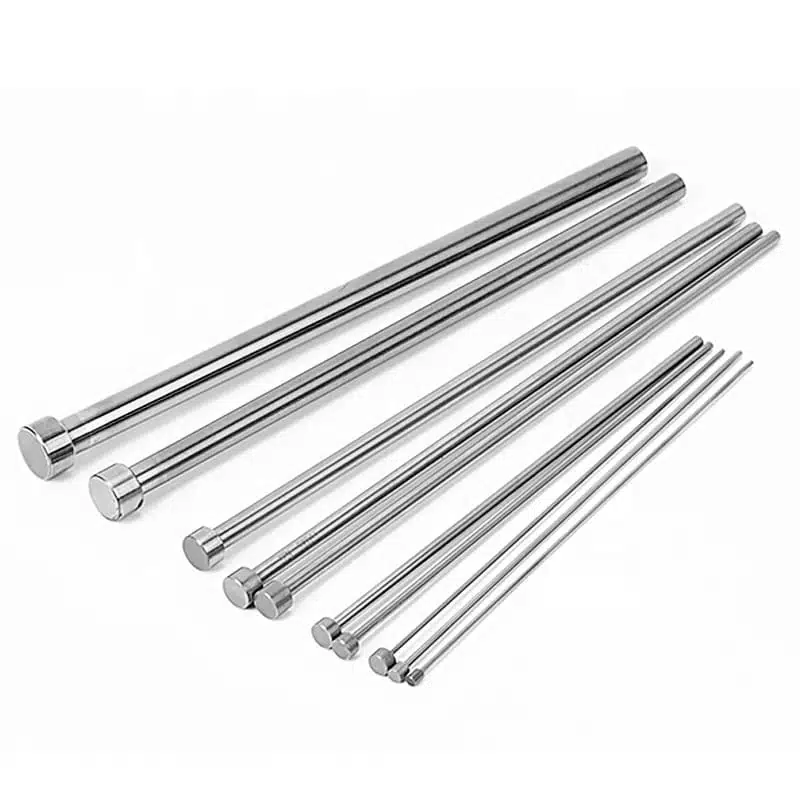

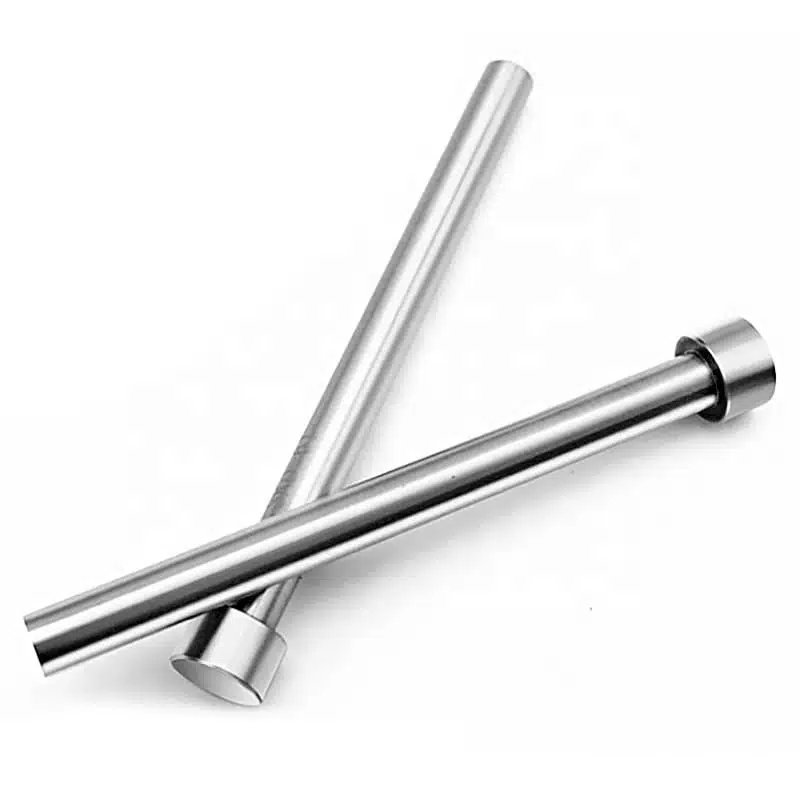

HSS Ws Hws Asp Skh51 SKD11 DC53 Punch Pin DIN9861 Mold Parts

HSS, WS, HWS, ASP, SKH51, SKD11, DC53 Punch Pin for DIN9861 Mold Parts

Punch pins are critical in the manufacturing process, especially for molds that require high precision and durability. In industries such as automotive, electronics, and plastic injection molding, the punch pin is responsible for cutting, shaping, or creating holes in various materials, such as plastic, metal, or composite parts. Depending on the application, punch pins can be crafted from a variety of materials to optimize performance and lifespan.

This article will explore the different types of steel used in punch pins—HSS, WS, HWS, ASP, SKH51, SKD11, and DC53—and how these materials are tailored to meet the specific requirements of DIN9861 mold parts.

Overview of DIN9861 Standard for Punch Pins

DIN9861 is an international standard that specifies the dimensions, tolerances, and types of punch pins used in mold manufacturing. It provides uniformity across the industry, ensuring that mold components are interchangeable and reliable. Punch pins made according to DIN9861 are commonly used in precision molds for automotive parts, electronic components, and consumer goods.

Types of Materials for Punch Pins

1. High-Speed Steel (HSS)

• Properties: HSS is a highly durable and wear-resistant material that retains its hardness at high temperatures. It is widely used in punch pins for high-stress, high-temperature environments such as metal stamping and precision molding.
• Applications: Ideal for high-speed production processes, HSS punch pins are commonly used in metalworking and plastic molding industries where frequent cycling and heat generation occur.

1. WS (Water Steel)

• Properties: Water steel is known for its toughness and ability to withstand high-impact conditions. It is often used in applications where the punch pin experiences frequent shocks and vibrations.
• Applications: Punch pins made from WS are particularly suitable for heavy-duty stamping operations or large-scale industrial production.

1. HWS (Hot Working Steel)

• Properties: HWS is designed for high-temperature operations, maintaining its strength and wear resistance even in hot working conditions. This material is resistant to thermal fatigue and softening.
• Applications: Ideal for molds used in hot forging or extrusion processes, HWS punch pins can handle high-temperature environments without losing their precision.

1. ASP (Powder Metallurgy Steel)

• Properties: ASP, produced through powder metallurgy, offers excellent wear resistance, high toughness, and fine microstructure. This material is known for its superior hardness and resistance to cracking.
• Applications: ASP punch pins are typically used in applications where extreme precision and durability are required, such as in aerospace and high-performance automotive part production.

1. SKH51

• Properties: SKH51 is a high-speed steel that retains its hardness even at elevated temperatures. It is highly resistant to abrasion, making it suitable for high-cycle production and demanding environments.
• Applications: SKH51 punch pins are commonly used in the plastic injection molding industry, where consistent accuracy and long service life are essential.

1. SKD11 (D2 Steel)

• Properties: SKD11 is a cold-work tool steel with excellent wear resistance, toughness, and high hardness. It is highly resistant to corrosion and deformation, making it ideal for harsh industrial environments.
• Applications: SKD11 punch pins are used in injection molds and stamping dies for high-wear applications. Their ability to resist deformation under heavy loads makes them reliable in precision work.

1. DC53

• Properties: DC53 is a high-strength tool steel that is often seen as an improvement over SKD11, offering higher toughness and greater resistance to cracking and chipping. It can withstand high wear and heavy impact, making it suitable for demanding production environments.
• Applications: DC53 punch pins are used in applications requiring superior toughness, such as progressive dies, deep drawing molds, and heavy-duty injection molds.

Advantages of Customizable Punch Pins for Mold Parts

1. Tailored to Application Needs: The wide range of materials available for punch pins allows manufacturers to choose the optimal material based on the specific requirements of the mold design and production environment. Each material offers unique advantages in terms of heat resistance, wear resistance, and toughness.
2. Extended Lifespan: Punch pins made from high-quality materials such as SKH51, SKD11, and DC53 are designed to have a long service life. Their resistance to wear and deformation under high stress extends the time between maintenance and replacement, reducing downtime.
3. Precision and Consistency: High-performance materials like ASP and DC53 provide exceptional precision, ensuring that each punch pin maintains its dimensions and performance even after thousands of cycles. This consistency is crucial in high-volume production settings.
4. Improved Productivity: By selecting the right material for the specific production environment, manufacturers can reduce machine downtime, improve production speed, and maintain product quality. Materials such as HSS and SKD11 allow for efficient production without sacrificing accuracy.

The choice of material for punch pins in plastic injection molds and other manufacturing processes can significantly impact the quality, durability, and efficiency of the end product. HSS, WS, HWS, ASP, SKH51, SKD11, and DC53 offer a wide range of properties suited for different applications. Each material excels in specific environments, from high-speed and high-temperature processes to heavy-duty, high-impact production.

For manufacturers looking to improve the performance and lifespan of their molds, investing in customizable punch pins made from these premium materials ensures reliable, high-quality results that meet industry standards such as DIN9861.
